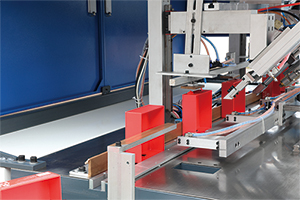

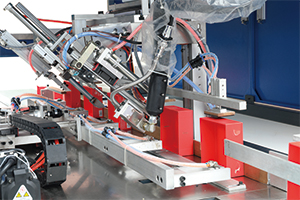

WM-RI400 Automatic Ribbon Inserting Machine

Product introduction

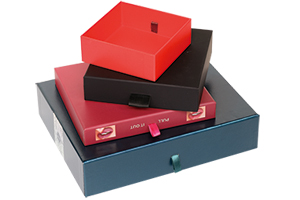

Automatic ribbon insertion machine is suitable for mass production of various types of world cover boxes, such as high-end jewelry boxes, mobile phone boxes, gift boxes, cosmetics boxes, watch boxes, beveled edge boxes, and some irregular boxes. The range of inserting ribbons is wider, meeting the needs of the modern packaging market. This machine adopts PLC, servo control system, human-machine interface, and photoelectric positioning system to achieve automatic feeding, automatic punching, automatic spot coating of hot melt adhesive, automatic feeding of ribbons, hot melt ribbons, inserting ribbons, and automatic flattening of ribbons inside the box, fully automatic completion. This machine is easy to adjust various sizes, saving operation time. The error range is+1mm, and only one operator is required to complete the main production operation of the entire machine.

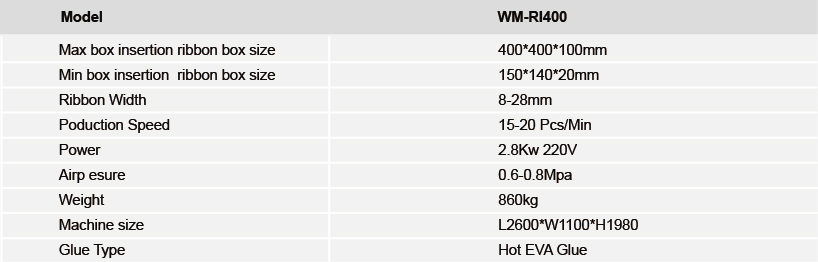

Technical parameter
