WM-1200A Automatic Grooving Machine

Brief introduction of equipment

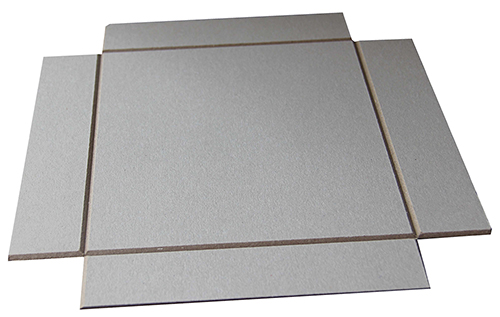

Automatic Grooving Machine is used for industrial cardboard, grey cardboard, MDF board, and cardboard grooving. This machine adopts belt feed paper to grooving, 600 mm diameter large drum with adjustable high-speed belt, usually with 8 slotting knives for grey cardboard, also can customize 12 slotting knives. High-speed stable dust-free.

Features

1, Slotting is stable and efficient,No dust,Higid Speed,V Grooving surface is smooth.

2, Environmental protection and energy saving:total power consumption is 2.0kw, been cut v groove material can recycle in whole(the cost can equal to power cost plus cutting tull cost) and low noise

3, Production efficiency, 8 hours can produce 10000 pcs

4,Durable Cutting tool with special knife grinder,it is very simple to grind a knife .

5,adjuatable cutter angle,two pieces of independent blade and fixture,different angles without customized blades,machine can adjust it self ,different card board thickness without adjustment can be slotted,use very convenient.

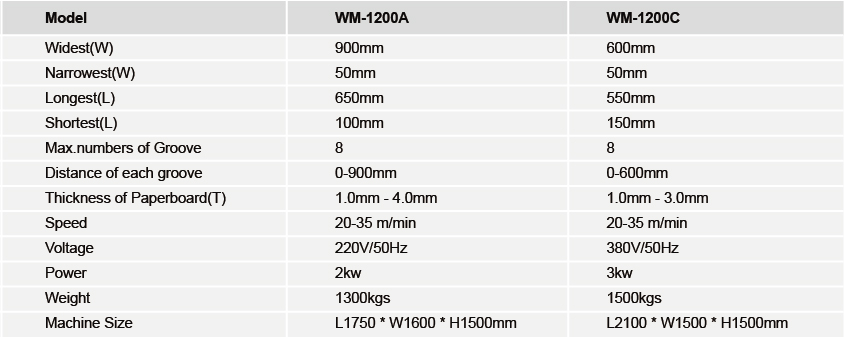

Technical parameter
