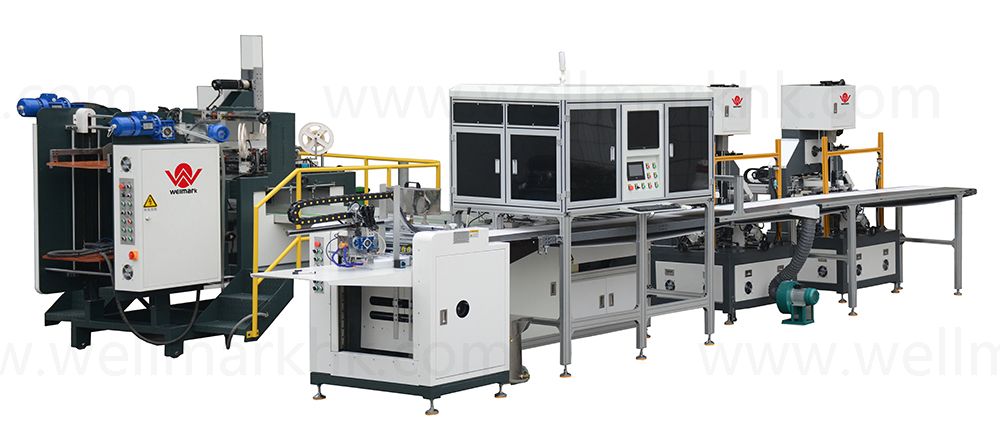

WM-DC450A/B Full Automatic Multi-functional Intelligent Box Making Machine

Product introduction

Full Automatic Multi-functional Intelligent Box Making Machine is the best equipment to produce high-end Rigid boxes, book type boxes, hard book case and other new products. Reasonable design, multi-function, wide use, stable performance, equivalent to the world's leading technology level. PLC programmable controller, high-definition camera positioning system, Yamaha manipulator positioning, touch human-machine interface. The automatic feeding paper, automatic gluing, automatic positioning box or grey board, automatic box holding and automatic forming process series are completed at one time. Four side folding machine can be connected to become an automatic production line of hardcover and Book case. The production efficiency of this machine is several times higher than that of traditional technology. It also has the functions of automatic fault diagnosis, display and alarm, and ensures the operation safety. Suitable for making high-end electronic product boxes, jewelry boxes and other high-end packaging cover type gift boxes..

Note: the maximum size of the box and minimal size depends on the paper at the same time the maximum and minimum size and surface quality of the paper. Speed will depending on the different boxes size with different paper materials.

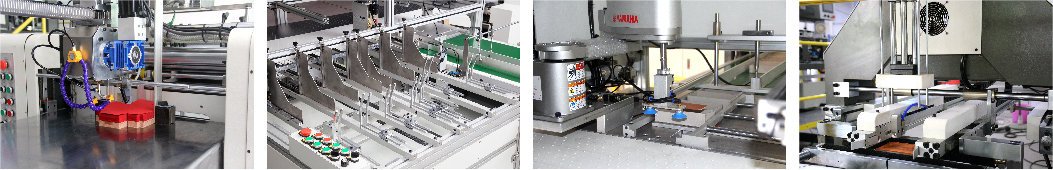

Features

1, The machine automatic feeding paper and gluing, manipulator taking box positioning, mechanical arm holding box forming and pressing air bubbles an intelligent production line is completed.

2, 24-hours control for glue pre-heating function

3, Spotter by 2pcs of 5 megapixel HD Camera tracing system and Yamaha mechanical arm to positioning (spotting accuracy ≤0.1mm

5,The forming part of boxes is accomplished intelligently with mechanical arm holding box, edge wrapping, ear folding, folding-in and air bubbles pressing.

6, The whole machine adopts PLC control, HD Camera positioning system, touch human-machine interface, the automatic production of rigid boxes forming process.

7, Computer control with error auto stop and display

8. Automatic Control System of Glue Viscosity (Selection)

9,The Forming unit can choose one or two (Selection)

9, Optionally add a Four Side Folding Machine to form an automatic case maker machine behind the conveyor belt (optional)

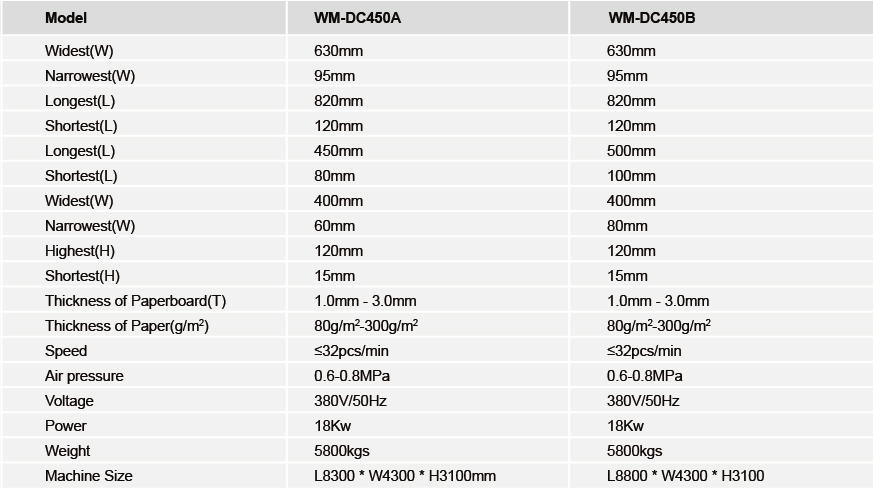

Technical parameter

The other special size of box can be special make the machine to production
